Deutz f3l912 3 cylinder air cooled 4 stroke air cooled diesel motor

FOB Reference Price:Get Latest Price
$2,000.00 - $3,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
F3L912
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Usage:
generator set,pump,construction machinery
Fuel:
Diesel
Stroke:
4 Stroke
Cylinder:
Multi-cylinder
Cold Style:
Air-cooled
Start:
Electric Start
Place of Origin:
Hebei, China (Mainland)
Brand Name:
HF POWER
Dimension(L*W*H):
722mm*664mm*814mm
Weight:
330kg
Certification:
ISO9001
Warranty:
half year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood case
Port
Tianjin.Shanghai, Qingdao or as discussed
Product Description
In-line, 3Cylinder, 4 Cycle Diesel Engine
Bore×Stroke
100mm×120mm
Displacement
2.827 Liters
Compression Ration
17:1
Cooling Way
Air cooled
Combustion system
Direct injection
Inspiration
Natural intake
Direction of rotation
Counterclockwise(face to flywheel end)
Fuel consumption ratio
263.8g/kwh(limit value)
Oil consumption ratio
2.04g/kwh(limit value)
Lubricant Capacity
8Liters
Net Weight
330kg
Overall Dimension(L×W×H)
722mm*664mm*814mm

Useage


Power class

Power
Speed(rpm)
1500
1800
2000
2150
2300
2500




Construction equipment
ISO 3046/1(IFN)
(Highly intermittent)
P(kW)
26
31
34
36
38
40
P(HP)
35
42
46
49
52
54
 ISO 3046/1(IFN)
(Intermittent)
P(kW)
25
29
32
35
36
38
P(HP)
34
39
44
48
49
52
ICFN
(Continuous)
P(kW)
24
28
30
32
35
P(HP)
33
38
41
44
48

Genset
ICXN
(Continuous)
P(kW)
24
28
P(HP)
33
38
Detailed Images

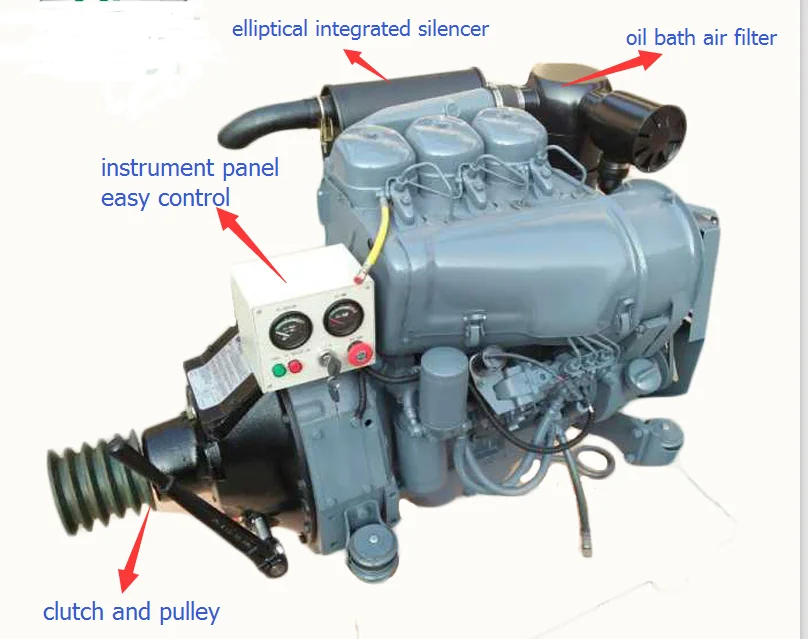

Instrument panel

Exhaust muffler has two types
When the engine use in inside

When the engine use outside

Deutz logo on the cylinder head

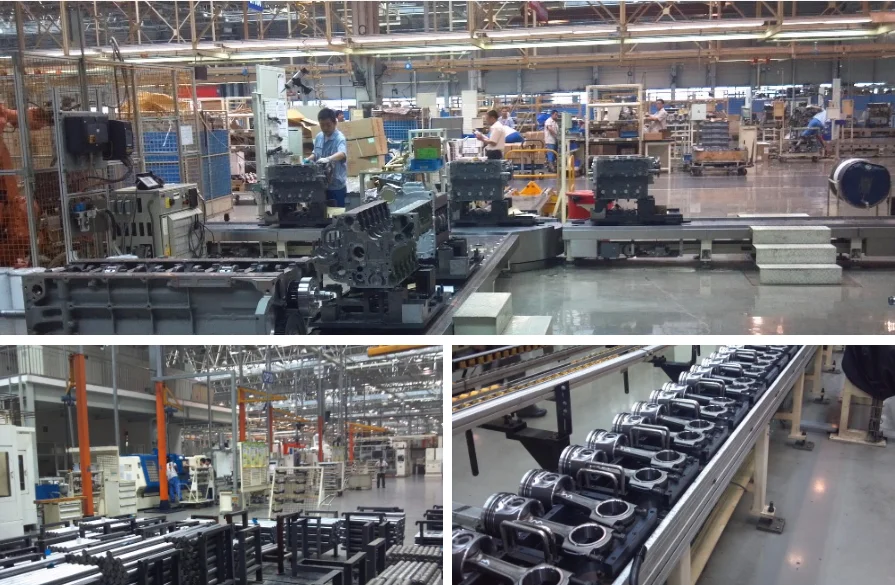

Our Factory
Packing & Delivery
