F6L912 deutz 912 air cooled 6 cylinder diesel engine

FOB Reference Price:Get Latest Price
$3,550.00 - $4,000.00 / Sets | 1 Set/Sets (Min. Order)
Usage:
Automobile Boat Other construction machine, genset, pump, marine
Fuel:
Diesel
Model Number:
F6L912
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Machinery
Condition:
New
Stroke:
4 Stroke
Cylinder:
Multi-cylinder
Cold Style:
Air-cooled
Start:
Electric Start
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Deutz
Dimension(L*W*H):
1510mm*820mm*990mm
Weight:
600kgs
Certification:
ISO9001
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Combustion system:
Direct injection
cylinder number:
6
Key Word:
deutz 6 cylinder diesel engine
Packing:
WOODEN CASE
Color:
Gray and customized
CERTIFICATION:
ISO9001
Displacement:
5.655L
Fuel consumption:
236.6g/kwh(limit value)
Lubricant capacity:
12L
Max torque:
345N.M/1600RPM
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
deutz 6 cylinder diesel engine is packed in plywood case
Port
Qingdao, Shanghai, Tianjin or as discussed
Product Description
More than  10 years export experience
Fast delivery time
Technical data
In-line, 6Cylinder, 4 Cycle Diesel Engine
Bore×Stroke
100mm×120mm
Displacement
5.655 Liters
Compression Ration
17:1
Cooling Way
Air cooled
Combustion system
Direct injection
Inspiration
Natural intake
Direction of rotation
Counterclockwise(face to flywheel end)
Fuel consumption ratio




236.6g/kwh(limit value)
Oil consumption ratio




2.04g/kwh(limit value)
Lubricant Capacity
12Liters
Net Weight
500kg
Overall Dimension(L×W×H)
1119mm×664mm×809mm
Usage
Power class

Power
Speed(rpm)
1500
1800
2000
2150
2300
2500





Construction equipment
ISO 3046/1(IFN)
(Highly intermittent)
P(KW)
54
64
70
74
78
82
P(HP)
73
87
95
101
106
111
ISO 3046/1(IFN)
(Intermittent)
P(KW)
51
60
66
70
74
78
P(HP)
69
82
90
95
106
111
ISO 3046/1(ICFN)
(Continuous)
P(KW)
48
57
63
66
70

P(HP)
65
77
86
90
95


Genset
ISO 3046/1(ICXN)
(Continuous)
P(KW)
48
57
P(HP)
65
77


Marine
ICXN
P(KW)
48
57
63
66
70

P(HP)
65
77
86
90
95

I0FN
P(KW)
74
78
82
P(HP)
101
106
111

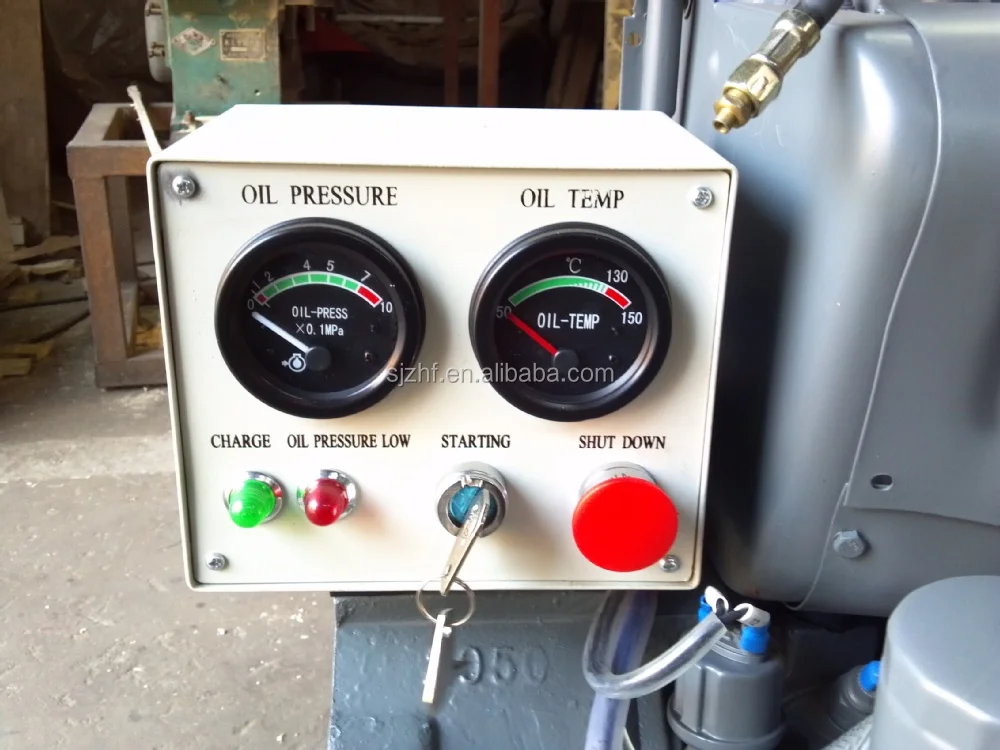

Instrument panel

Exhaust muffler has two types
When the engine use in inside

When the engine use outside

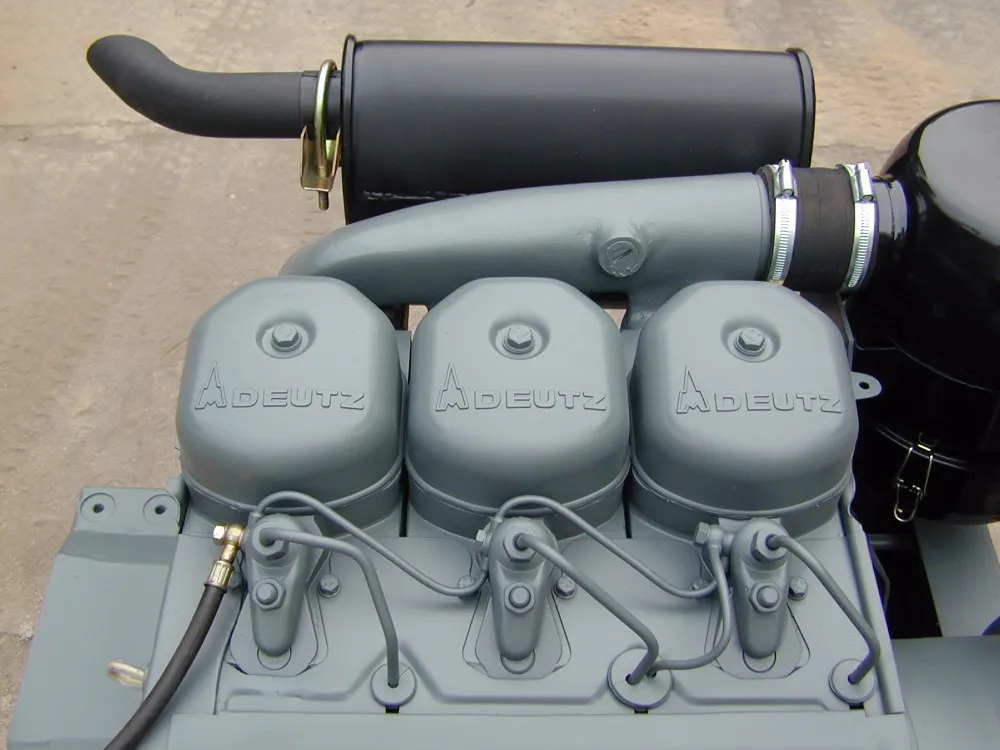

Deutz logo on the cylinder head

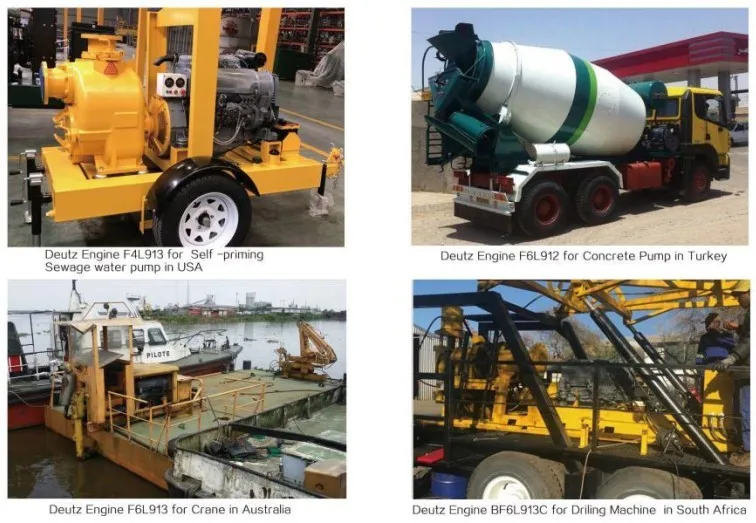

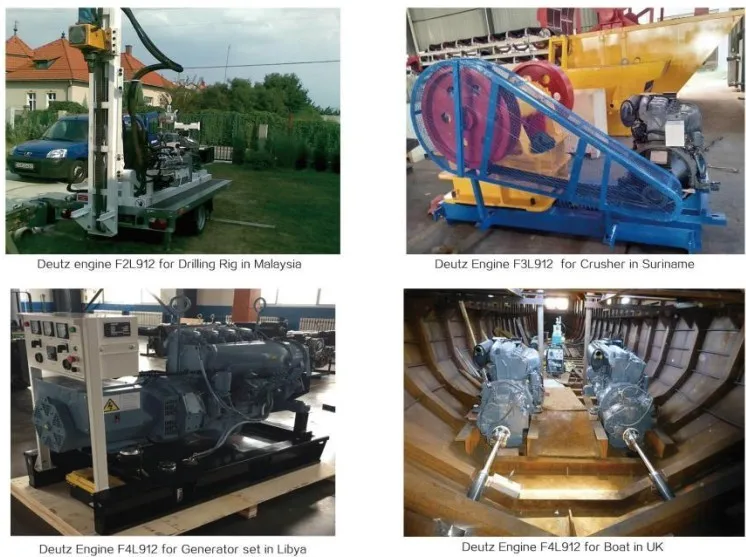

Typical Projects
Customer Feedback
Factory

1. A total area of more than 124 thousands squre meters
2. About 280 technical employees in the factory
3. More than 30 years experience in diesel engine field
4. High quality and competitive price
5. Professional service and prompt reply

Why Choose Us
Packing & Delivery
