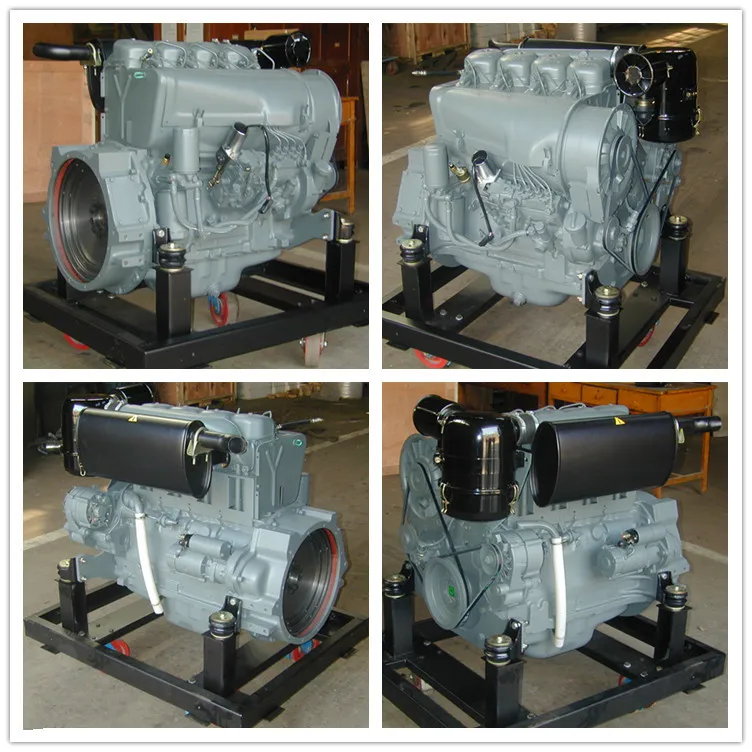

F4L912 air cooled diesel 912 913 deutz engine for construction machine and generator set,pump

FOB Reference Price:Get Latest Price
$2,300.00 - $2,800.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
F4L912
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Usage:
construction machine, genset, pump, marine
Fuel:
Diesel
Stroke:
4 Stroke
Cylinder:
Multi-cylinder
Cold Style:
Air-cooled
Start:
Electric Start
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Deutz
Dimension(L*W*H):
820mm*1080mm*920mm
Weight:
400kgs
Certification:
ISO9001
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Keyword:
diesel diesel engine
Color:
customized
Starting system:
Electric Starter
BORE*STROKE:
100mm*120mm
Displacement:
3.770 liers
Fuel consumption:
236.6g/kwh
Power:
32-54kw
speed:
1500-2500rpm
Compression ratio:
direct injection
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood case package
Port
Tianjin,Qingdao or discussed
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 10 To be negotiated
Product Description

(1)Small seize,light weight ,low fuel consumption,long service time
(2)Wide application:engineering machineries, mining machineries,automobiles, agriculural equipments generating
equipments, medium and small ship ect.
(3)Fine adaptablity:reliable in dry,hot cold weather and in poor water quality condition as well as in highland area
and low pollution requested working environment
As export company of the factory ,we' ve been on machinery industry with 10 years with clients from Middle East,
South America, Africa, Australia and Southeast Asia, including government departments of some country.


Technical data

Model
F4L912
Type
In-line, 4 cylinder,4 cycle, diesel engine
Bore*stroke
100MM*120MM
Cooling way
Air cooled
Direction of rotation
Counterclockwise(face to flywheel end)
Inspiration
Natural intake
Combustion system
Direct injection
Compression ratation
17;1
Displacement
3.770 Liters
Fuel consumption
236.6g/kwh(limit value)
Oil consumption ratio
2.04g/kwh(limit value)
Lubricant capacity
9.5 Liters
Max torque
230N.M/1600RPM
Gross weight
450KG
Packing dimension
820mm*1080mm*920mm


Continuous power
32kw(44hp)/1500rpm
38KW(52hp)/1800rpm
41kw(56hp)/2000rpm
44kw(60hp)/2150rpm
46kw(63hp)/2300rpm



Intermittent power
34kw(46hp)/1500rpm
40KW(54hp)/1800rpm
44kw(60hp)/2000rpm
46kw(63hp)/2150rpm
49kw(67hp)/2300rpm
51kw(69hp)/2500rpm


High intermittent power
35kw(48hp)/1500rpm
43KW(58hp)/1800rpm
46kw(63hp)/2000rpm
49kw(67hp)/2150rpm
51kw(69hp)/2300rpm
54kw(73hp)/2500rpm

Usage
Packing & Delivery

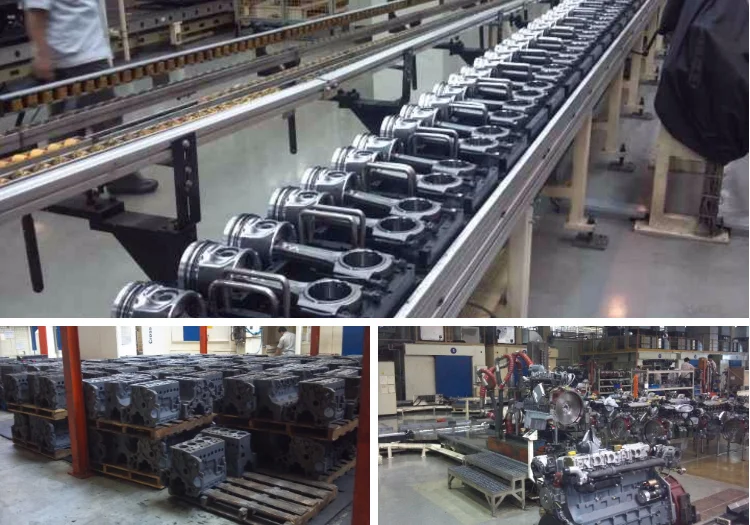

Company Information


1. A total area of more than 124 thousands squre meters
2. About 280 technical employees in the factory
3. More than 30 years experience in diesel engine field
4. High quality and competitive price
5. Professional service and prompt reply
